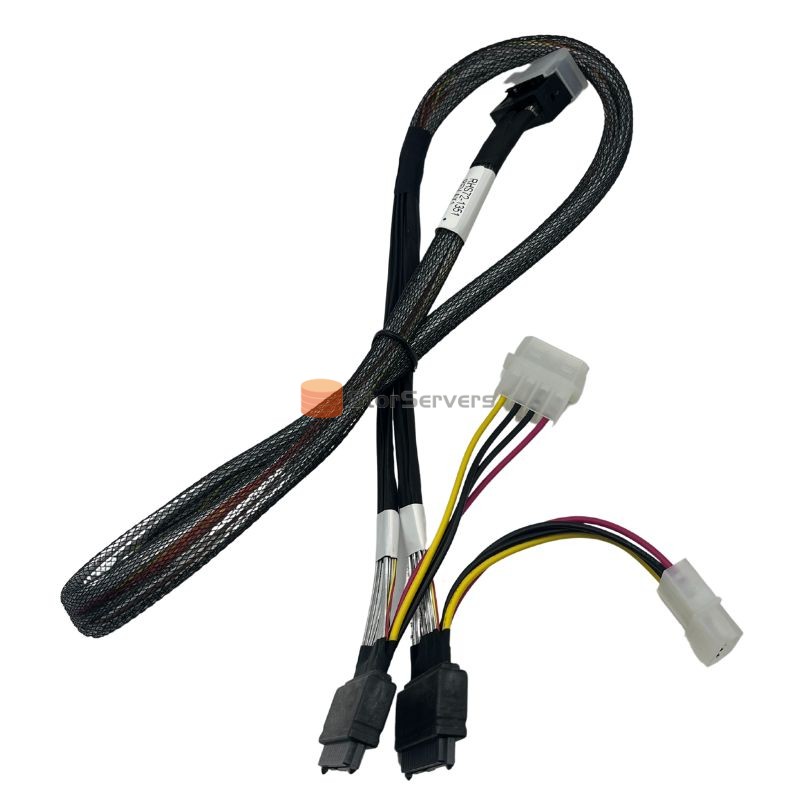

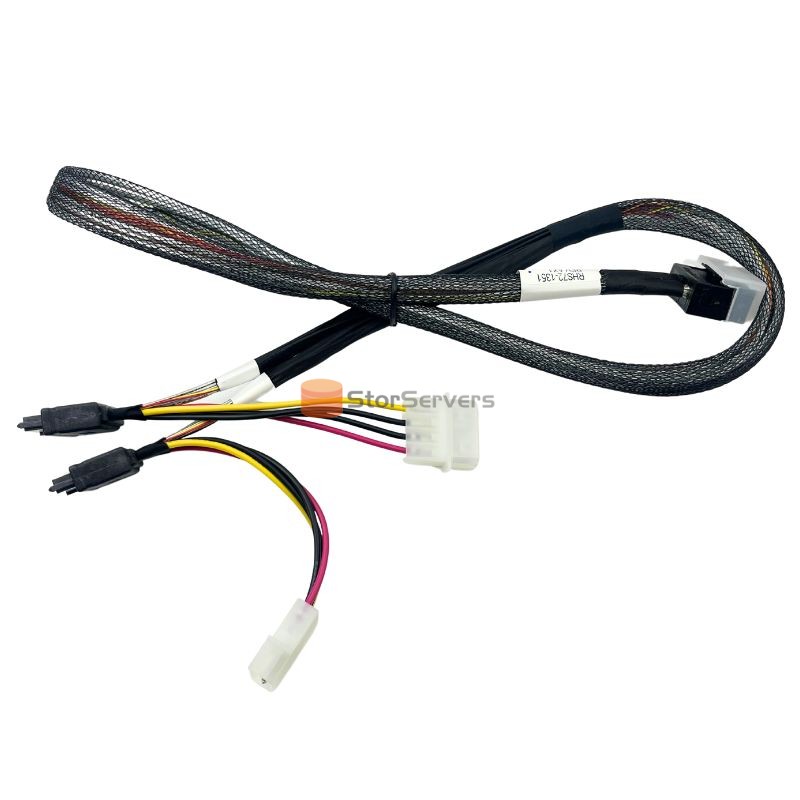

NVMe Data cable SFF 8643 to SFF 8639
Applications
1、 Interface definition: Host side (A): SFF-8643 (Mini SAS HD, 36 pin male), 4i (x4 channels). Device end (B): SFF-8639 (U.2, 68 pin female), including PCIe x4+power supply pins. Power Supply Branch: Comes with a 15 pin SATA male connector (providing power to U.2 SSDs without the need for an additional power cord). Number of interfaces: 1 in 1 out+1 power supply head, a total of 3 connectors. 2. Speed and bandwidth: Protocol compatibility: PCIe 3.0/4.0, NVMe 1.3/2.0, SAS 3.0. Host speed: 12Gbps SAS3.0/32Gbps PCIe 3.0 x4 (depending on controller mode). Device speed: PCIe 3.0 x4 → 32Gbps (4GB/s), NVMe at full speed. Channel Mapping: The 4x SAS channel of SFF-8643 is mapped to PCIe x4 for U.2 SSD. 3. Electrical and Physical: Wire Gauge: 30AWG oxygen free copper, double shielded (aluminum foil+braided). Impedance: 100 Ω differential, compliant with SAS3.0/PCIe 4.0 specifications. Length: standard 0.3m/0.5m/0.75/1m; Black is common. Environmental Protection: RoHS compliant and halogen-free. Gold plating: Contact gold plating (Au15-30 μ "), anti-oxidation, low contact resistance.
Key Features
- Mini SAS HD to U.2 NVMe data cable

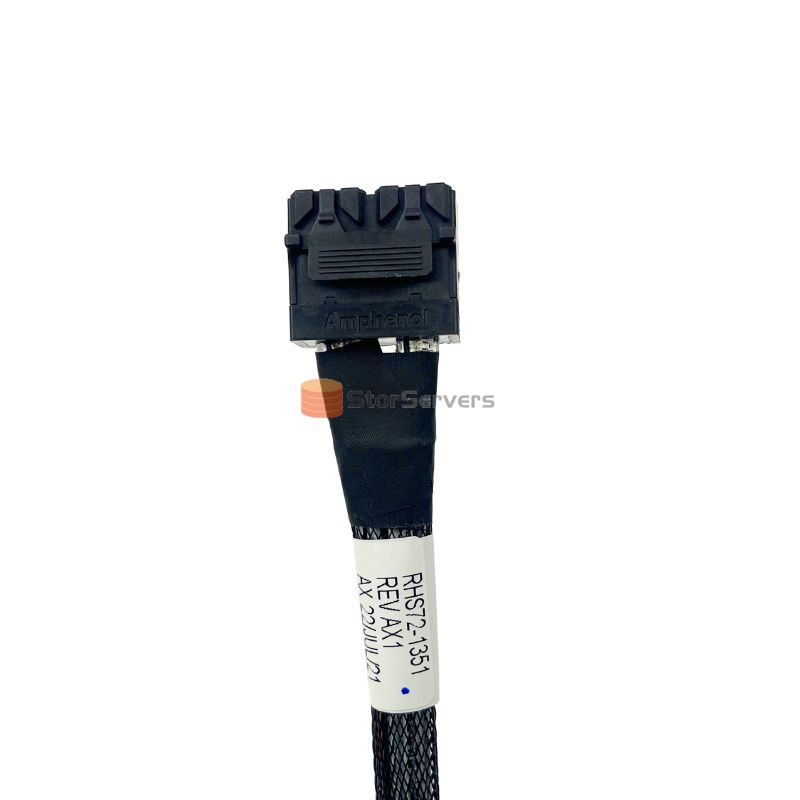

- Host end (A): SFF-8643 (Mini SAS HD, 36 pin male), 4i (x4 channels)

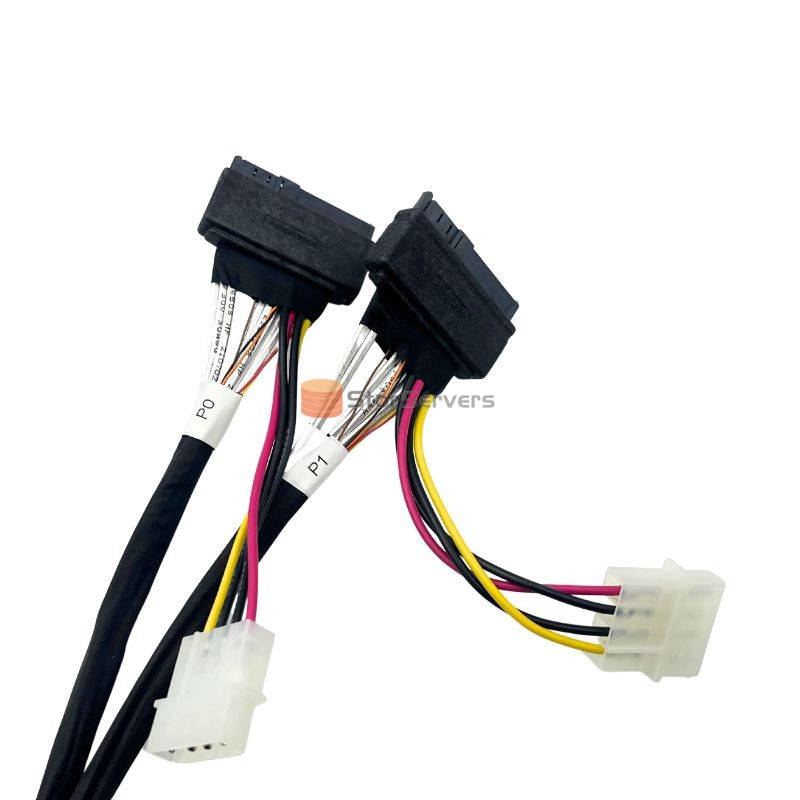

- Device end (B): SFF-8639 (U.2, 68 pin female), including PCIe x4+power supply pins
- Host speed: 12Gbps SAS3.0/32Gbps PCIe 3.0 x4 (depending on controller mode)
- TDevice speed: PCIe 3.0 x4 → 32Gbps (4GB/s), NVMe full speed
- Protocol compatibility: PCIe 3.0/4.0, NVMe 1.3/2.0, SAS 3.0
Specification
| Model |
SFF 8643 to SFF 8639 |
| Host end (A): |
SFF-8643 (Mini SAS HD, 36 pin male), 4i (x4 channels) |
| Device end (B): |
SFF-8639 (U.2, 68 pin female), including PCIe x4+power supply pins |
| length |
0.3m/0.5m/0.75m/1m
|
| Controller |
Lack |
| Systems Interface Type |
Mini SAS HD to U.2 NVMe data cable |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
About US
About us
STOR TECHNOLOGY LIMITED founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcome!
Our Advantages
-
-
High Quality
Good quality control System,competitive cost control system.
-
Low MOQ
Large production capacity with lowest MOQ.
-
-
-
Shipping & Packing
- Packing: standard export packing or customized packing
- Shipping Ways:
By express (3-7 days via DHL, UPS, TNT, FEDEX; 5-10 day Via EMS)
By air or sea or combined tranportation
FAQ
Q1: What payment method do you accept?
A1: Trade assurance, T/T, Western Union
Q2: What is the mininum order Quantity(MOQ）?
A2: We can sell one piece for testing.
Q3: When is the lead time of your products?
A3: we have stock, we can provide fast delivery within 2~3 days for 10pcs.
Q4: How about the warranty service?
A4: 3 year for warranty free.
